DNM 3″ MINI IN CEILING SPEAKER DCS 30
- High performance compact IN CEILING SPEAKER that ideally suits any home theatre/ HI-FI Stereo and background music install sound application
- High quality polyglass cone with butyl surround
- Passive radiator for bass extention

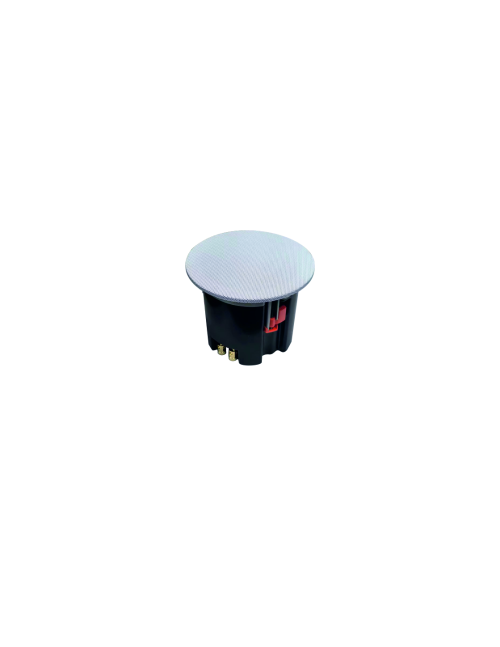

- Magnetic grille and dog ears for effortless ceiling mounting
SPEFICICATIONS
| SPEAKER DRIVER | FULL RANGE 3″(76mm) | POLYGLASS CONE WITH BUTYL SURROUND(76mm) |
| FRQUENCY RESPONSE | 110 Hz – 18KHz @ -3dB ( Free Air) | |
| IMPEDANCE | 8 OHMS | |
| POWER HANDLING | 50 Watts ( EIA – 426 -B | |
| SENSITIVITY | 84dB SPL ( 2.83V/ 1 METER) | |
| SPEAKER DIMENSIONS ( D X H) | 4.88″ ( 124 mm) X 3.84″(97.5mm) | |
| CUTOUT DIMENSIONS | : 3.9″ (100 mm) | |
| SPEAKER DEPTH | WITHOUT BACKCAN – 2.2″ (56mm) | WITH BACKCAN – 3.68″” (93.6mm) |
Note : As part of our continuing programme to improve the design and quality of our products we shall be free to make changes in the design and specifications without any notice.
